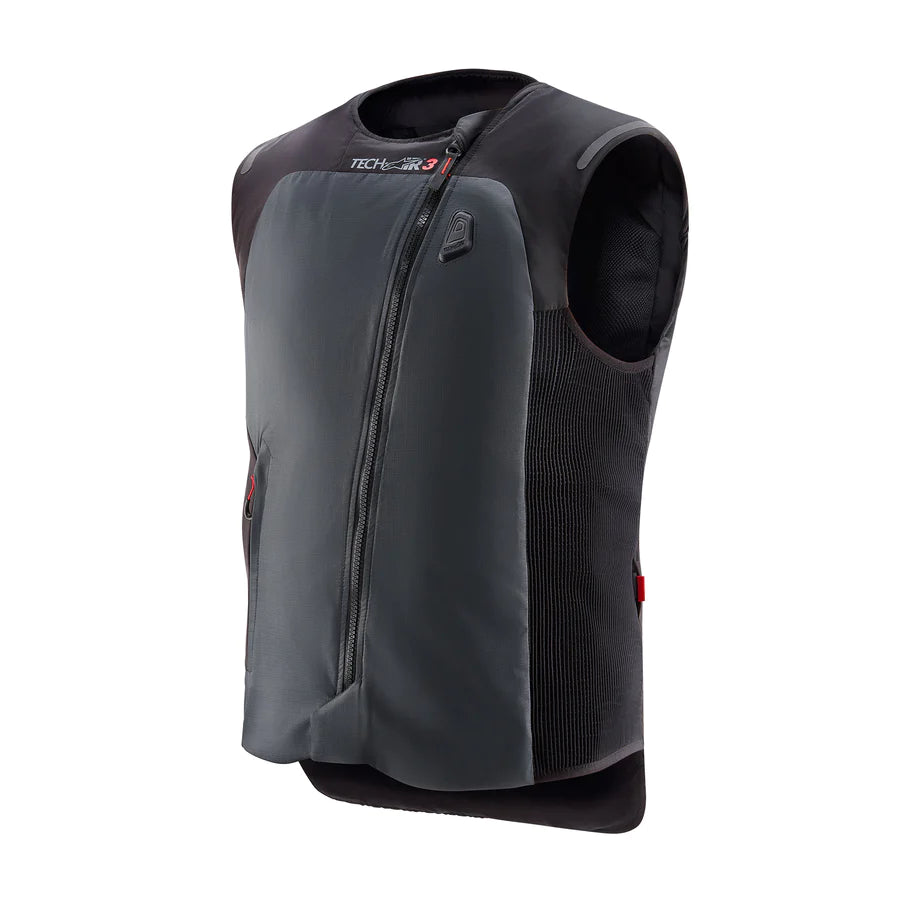

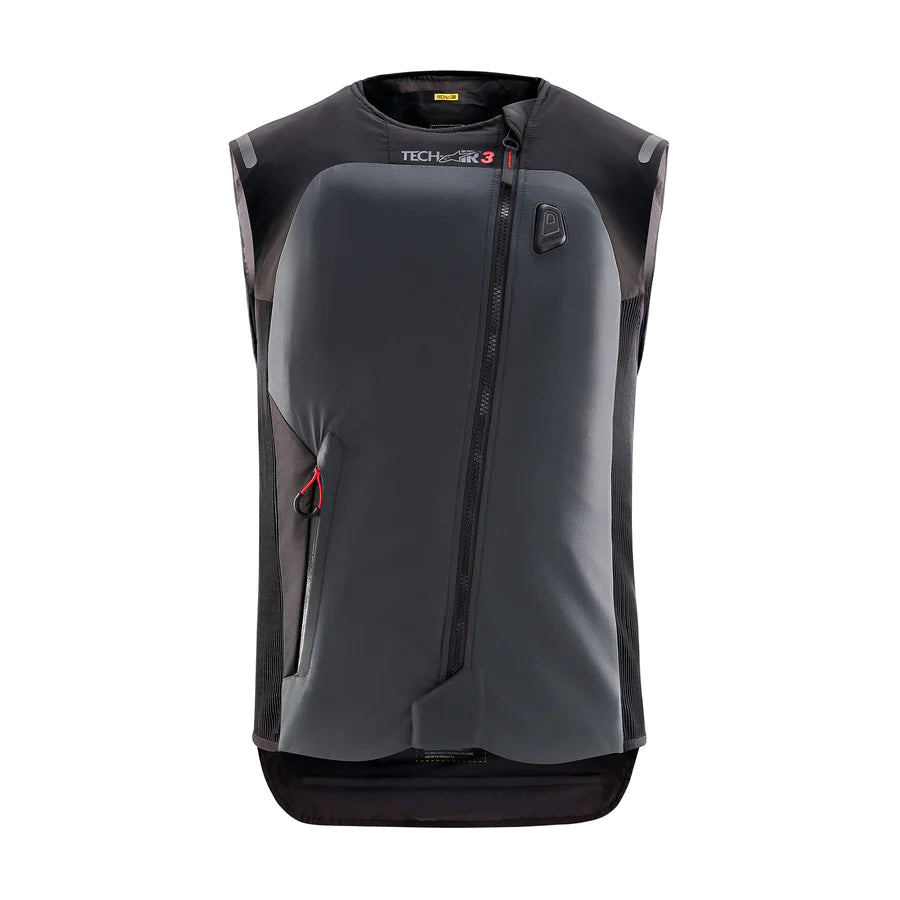

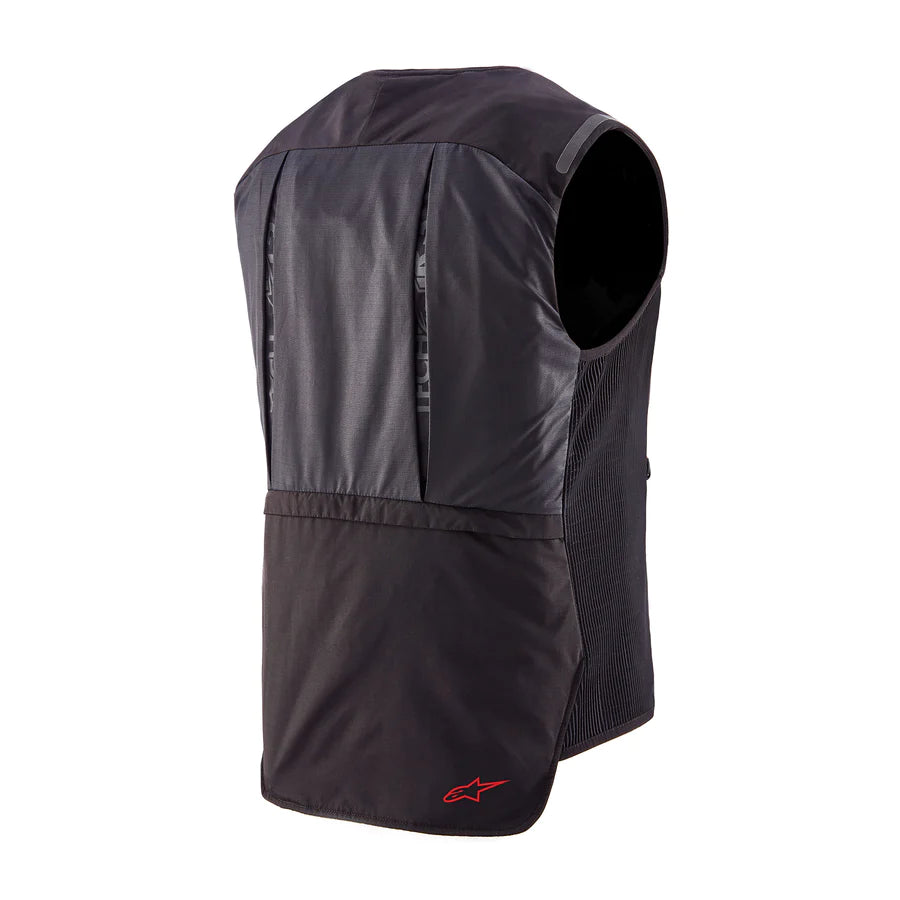

Alpinestars Tech-Air 3 Airbag System

Electronics System:

• Incorporates 6 integrated sensors (3 accelerometers, 3 gyroscopes or 1 triaxial gyroscope and 1 triaxial accelerometer) to provide the best crash monitoring performance in a variety of dynamic riding situations
• Activates automatically via the magnetic zip closure
• ECU and electronics are located in a waterproof housing for proven wet weather performance
• Incorporates Alpinestars’ Pro 2nd Generation compact Electronic Control Unit (ECU) embedded in the upper back of the vest
• Uses the Tech-Air 5 street algorithm which provides active protection in street riding scenarios and a variety of riding conditions, even when stopped
• Upgradable system firmware, accessible via the Tech-Air App
• Bluetooth low energy (BLE 5.0) connectivity with the Tech-Air App shows the system’s status, the battery status and riding data
• Integrated, certified lithium ion battery, with a battery life of 40 hours and a recharge time of approximately 4 hours

Operation:

• LED display on the front chest continuously indicates the airbag’s operational status
• LED display incorporates a haptic alert, which vibrates to confirm the system is armed and alerts the rider when the battery is running low
• Equipped with a diagonal zipper to provide complete front chest coverage while also concealing the inner airbag
• Internal magnetic button facilitates easy positioning of the airbag across the chest when riding

Airbag System:

• Fully autonomous active airbag system
• Strategically positioned stretch panels on both sides of the abdomen to accommodate the expansion of the airbag in the event of a crash
• Argon gas canister that provides the inflation gas for the airbag’s deployment is housed in an ergonomic case on the right side of the lower back of the rider

Additional Features:

• Chassis is constructed with a water resistant treatment for effective all-weather performance
• Perforated back zone for improved breathability, with internal air channels for enhanced airflow
• Integrated back protector pocket (back protector sold separately)
• Canister housing, electronic wiring and airbag are easily removable
• Packable design for easy storage when not in use

Washing Care:

• Remove airbag bladder and all electrical components, including:
  • Battery
  • Canister Case
  • ACU
  • LED panel
• Use a damp microfiber cloth and mild detergent (ex. Woolite) to clean the outer material chassis
• Hang dry in a ventilated area, away from sunlight
